| 参数名称 | 参数值 |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.130" (3.30mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.453" (11.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | Board Guide |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | 5A |
| Voltage Rating | 500V |
新闻资讯

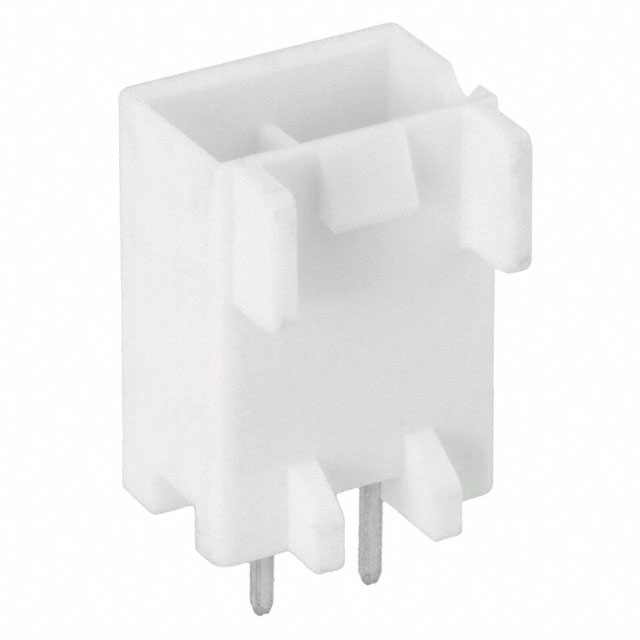

Hirose 接头、公引脚 产品 DF33C-2P-3.3DSA(24)
作为Hirose优质且资深的代理服务商，深圳凌创辉电子有限公司在为您采购DF33C-2P-3.3DSA(24)时，能够保证原装进口的品质保障以外，价格也是业界最优的，找我们买DF33C-2P-3.3DSA(24)绝对的现货正品，需要报价和咨询请您随时联系我们，同时我们为方便您了解DF33C-2P-3.3DSA(24)产品详情，我们提供了pdf在线观看参数资料，助您轻松采购。
