| 参数名称 | 参数值 |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz |
| Frequency Range | 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 4 |
| VSWR | 1.1 |
| Return Loss | - |
| Gain | 10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi |
| Power - Max | - |
| Features | Cable - 65mm, LNA |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.280" (7.10mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
新闻资讯

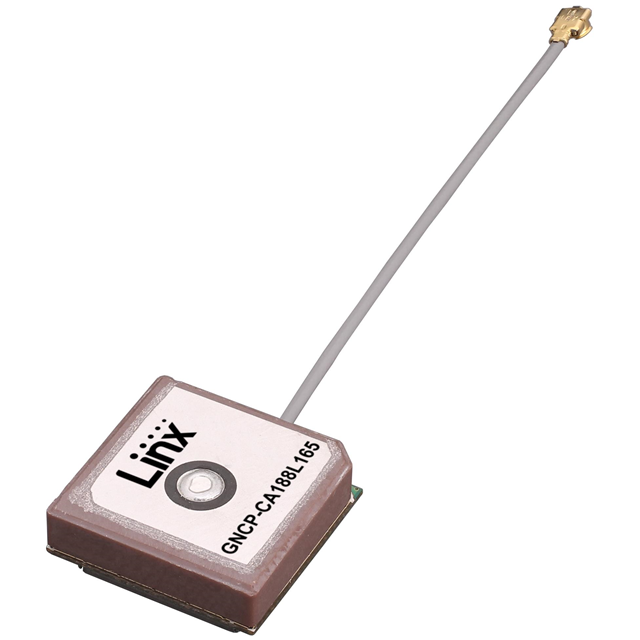

TE Connectivity 射频天线 产品 ANT-GNCP-CA188L165
